Series 20 CF
Series 20 CF is a slim-line, high performance exterior sliding door system with a balanced combination of thermal and acoustic behavior. The vertical sightlines are only 1” and underline the minimalist appearance. The Sill has an integrated drainage and track cleaning system. The Sliding doors feels very light, easy to operate, and offers unlimited configuration possibilities and opening variants.
Sill Options
Minimal
The unique material mix of the sill allows a flush, threshold free appearance. The sill is desigend to build-in the finish floor, optional with staggered tracks, designed for all climate conditions.
Invisible
A one of a kind flush, underfloor sill with minimal appearance underlines the inside/ outside living feeling even more. High performance bearings for smooth movement with large openings. The visible sill is only 1”.
Features

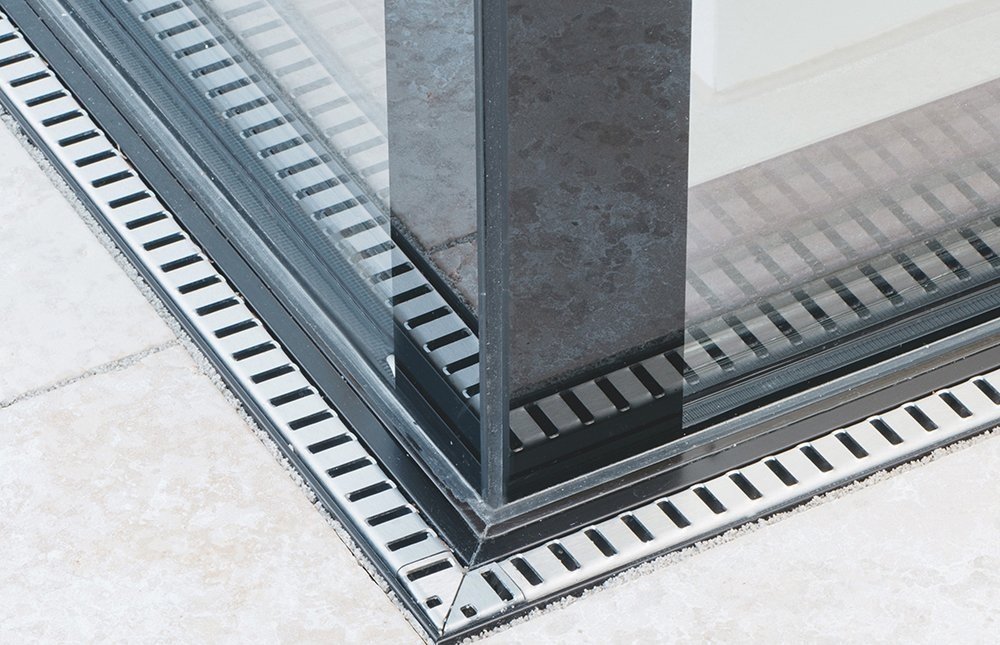

External Drainage
-
The ALLURE window system also offers multiple external drainage solutions, depending on the construction requirements. With two widths available, both external drainage options are attached and fulfill any specialist requirements of the building. The drainage system can be matched perfectly to the window track system for a flowing aesthetic.
Material: stainl. steel, alum.
Gutter width: 1” (slim-line) or 2”
System: attached to track

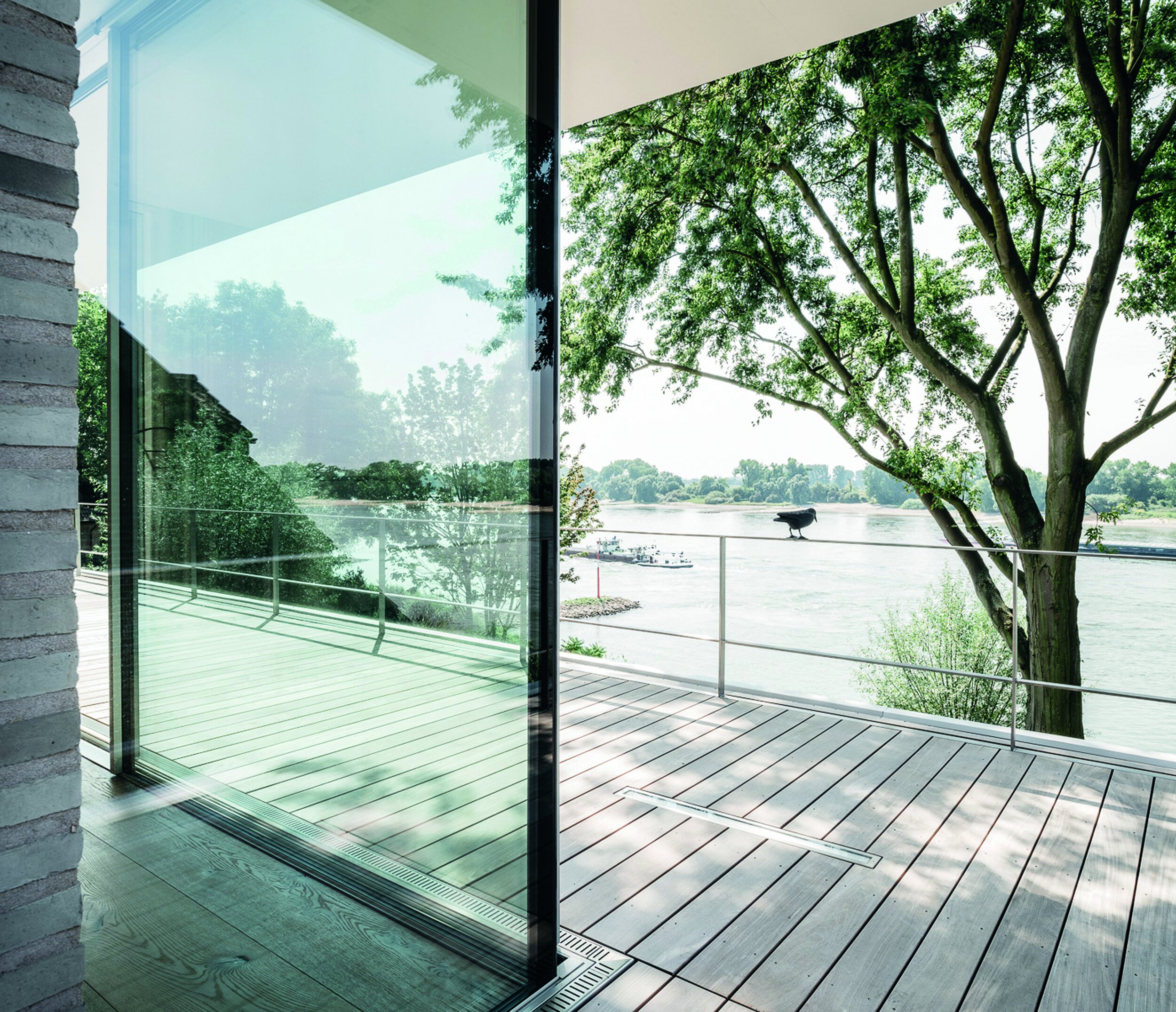

Full Glass Corner
-
The full glass corner feature becomes a design focal point and makes the most of panoramic views in the home. Corner windows can add design interest to both the interior and exterior of the living space, maximize views, and capture light from multiple angles. The full glass corner option is available in the same color as the frame.
Electronic Drive Unit
-
The motor drive is integrated into the window frame system, invisible and almost maintenance-free. Automatic and Manual operable (with no motor resistance) at the same time offers the user full flexibility. The smart motor system analyzes the route during operation, thus ensuring that the movement is always smooth and nearly silent.
Traction: up to 2,200 lbs
Smart Home: yes
Safety: collision stop
Staggered Tracks
-
Less is more, so the Seriea CF is as minimal as possible! The ALLURE track system creates a true inside/outside feeling with staggered tracks and a multi-slide system with a slim transition.
Insect Screens
-
The insect screen is made of weather and tear-resistant material and harmonizes perfectly with the window system. A retractable rolled and pleaded screen is available due to configuration and size. The screen is concealed within the frame profiles of the sliding door. Systems are constructed from durable aluminum.
Material fabric: fibre
Pull out wide: varies depending on w x h
Color: standard options or custom
Shading
-
Material: aluminum
Color: RAL/DB – color range
Finish: powder-coated
Shades: various shapes, folded
Fixing: stainless cables
Slats: various types
Configuration Options
With so many customizable configurations, ALLURE Window System brings your imagination to life. The floor to ceiling full glass wall and corner options captures light from multiple angles, brightening the interior space and maximize the view. All configuration options are available as either a manual or automated operation. Blurring the line between indoor and outdoor ALLURE Window System are the ideal solution.
Color Options
The high-quality surface finishes provide durability with endless design possibilities. ALLURE offers a variety of color choices spanning the entire RAL spectrum for powder-coated and anodized aluminum finishes that enable the window system aesthetically pleasing homogeneity with the surrounding architecture, achieving a cohesive and uniform appearance. For harsher climate applications, the system can be pre-treated with specialized coatings to provide resistance to salt for coastal properties, providing long-lasting beauty in any environment.
